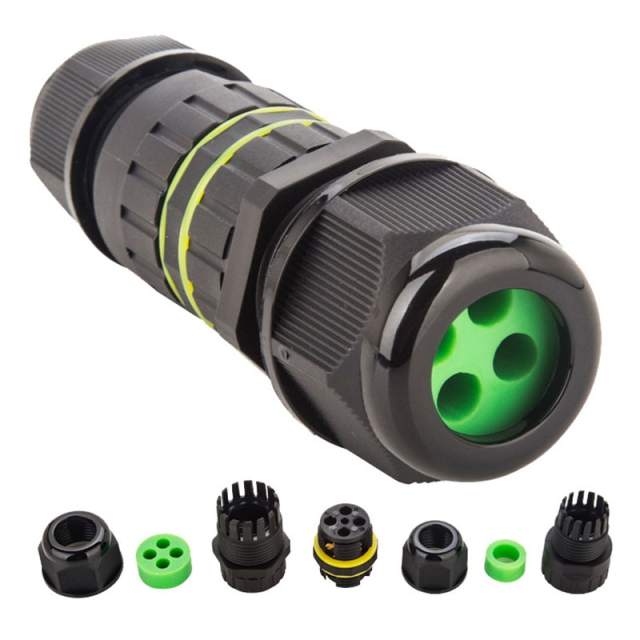

Features:
1.Three positioning, with wave spring knob, and the outer ring card point locking snap engaged with the socket, easy to operate with uniform intensity engaging, and keeping the current and signal transmission more stable.
2.With wave spring structure,keeping elastic wave spring stranded automatically while connection.
3.With copper needle retainer, copper welding operations and install socket separated, making the products simple and convenient operated in harsh environments .
4.With outer alloy ring, making the plug and socket more stable while closed , keeping the power supply or signal transmission more stable and comparable while connection.
5.With tail jaws , to tighten and twisted the wire more effective, improving the waterproof rating ,tensile strength , and keeping the nuts anti-back effectively.
6. Using waterproof clip coil designing, keeping the products have better waterproof rating while closed.
7.Different core designing, the products can be widely used for signal, USB, fiber optic and power plug connection.
8. Waterproof IP65/IP67 while connection.
Specifications
Specifications | |
Connecting mode | Latching Lock connect |
Protection level | IP65/IP67 |
Cable specification | 26~24AWG |
Diameter range | Φ5mm ~Φ6.5mm |
Contact diameter×Qty | 2 |
Current rating(A) | / |
Temperature rise | / |
Operating voltage(AC.V.rms) | / |
Withstanding voltage(AC.V)1min | / |
Contact resistance | / |
Insulation resistance | >500MΩ |
Durability | ≥500 mating&unmating cycles |
Temperature rating | -40°C~80°C |
Method of connecting cable | Soldering |
Prevent the combustion level | UL94-V0 |
Material | |
Insulated parts | High performance engineering plastics |
Hardware metal | Zinc alloy(pearl hard chromium) |
Contact pin | Copper alloy(gold-plated 4U) |
Spring | Stainless steel |
Sealing | Silica gel |
Main characteristics | |
Sealed against dust and fluid (IP65/IP67) | |
Vibration resistance,impact resistance,stretching resistance | |
socket with cover | |
Application industries | |
Stage equipment - The smart grid | |
Medical equipment - Server | |
Solar energy equipment - Ship equipment | |
Electric power equipment - Vehicle equipment | |
Communications equipment - Heavy machinery |
